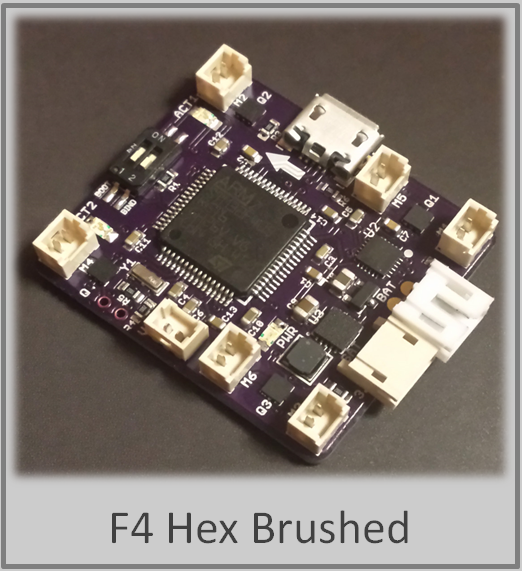

Designed for Quads using 7mm-8.5mm brushed motors,

ARM STM32F4 processor,

USB socket for firmware flashing and parameter editing,

MPU6500 Gyro/Accelerometer connected via SPI,

4 x 5A Dual Mosfets,

Buzzer pads on bottom of board,

Dip switch for both Bind and Boot loader mode,

1.25mm Motor sockets for easy motor connection,

Runs BetaFlight firmware,

DSM2/DSMX Sat receiver socket,

Dimensions: 28mm x 32mm.

Build - Share - Fly

This board can be ordered from OSHpark,

The BOM can be downloaded here.


Released under the Creative Commons Attribution NonCommercial 4.0 License.



 Made available without any Express or Implied Warranties
